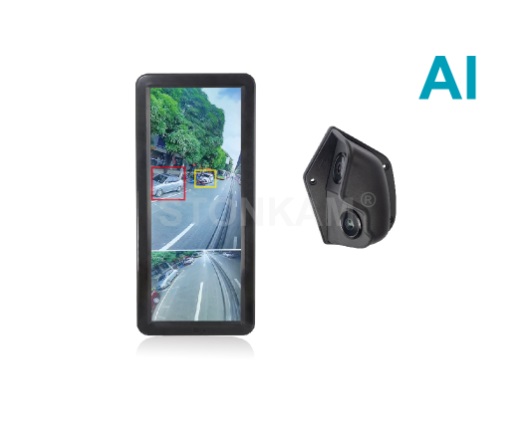

WTC-HD846 12.3 inch HD IPS Screen Electronic Mirror For Blind Spot Monitoring

  • Compliant with UN ECE R46】The STONKAM electronic rearview mirror paired with the FHD846/FHD847 complies with UN ECE R46 regulations, providing exceptional visibility and safety
    Pedestrians & Vehicle Detection and Warning】It can identify pedestrians and vehicles such as cyclists, electric bikers, and pedestrians on foot. Pedestrian and vehicle detection and warning function.
    Two-in-one that combines in-vehicle DVR and monitor】a major upgrade of invehicle monitor! It can record and replay driving videos. With built-in G-sensor, support G-sensor alarm recording triggered by collision detection. All of these functions can help you free from unreasonable damage and responsibility.
    1080P high definition video】support 2-channel camera input, provide split-view image; can be perfectly integrated with the rearview system to achieve comprehensive vehicle monitoring
    3s output speed】 quick turn-on, start displaying images and recording videos within 3 seconds after powered.
    IPS screen】  high contrast, high brightness. It could restore the true color, presenting the brighter and more delicate display with much higher resolution.
    Replacement for Traditional Rearview Mirror】Having solved the problems of being poor  visibility at night, susceptible to rainy, snowy and foggy weather  and having strong reflection, etc.  on  traditional rear-view mirrors.
    Data security】ACC time-lapse recording;  super capacitor power-down protection, to prevent the loss of video data.
Category:
  • LCD Dimension

    12.3″

    Resolution

    1920x 3 (RGB) x 720

    Brightness

    1000cd/m2

    Contrast

    1000:1

    Viewing Angle

    U: 85, D: 85, L: 85, R: 85.

    Aspect Ratio

    24:9

    Video Input

    4-channel camera input, support mutiple resolutions(1080P25/1080P30)

    Storage

    SD Card, MAX 512GB

    Operating temp. & humidity

    -20~+70℃, RH90%MAX

    Storage temp. & humidity

    -30~-+80℃, RH90%MAX

    Power Consumption

    Max.32W(with cameras)

    Power Supply

    10-32V

    Anti-vibration

    ISO 16750-3 2012 (2.13G)
