WT33707 AOC series

Feature

• Supports 10.3125Gbps data rate
• Hot-pluggable electrical interface
• 850nm VCSEL transmitter
• PIN photo-detector receiver
• Maximum link length of 300m on OM3 MMF
• Operating case temperature range 0°C to +70°C
• Power dissipation < 1W
• RoHS compliant (lead free)

Applications

• 10G Ethernet
• InfiniBand QDR,SDR,DDR

Standards
SFF-8431, SFF-8432, SFF-8472

Description

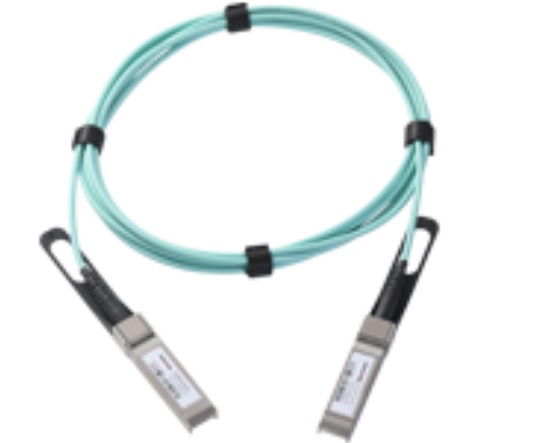

WT33707 are direct-attach fiber assemblies with SFP+ connectors. They are compliant with SFF-8431,SFF-8432 standard. They are suitable for short distances and offer a cost-effective solution to connect within racks and across adjacent racks. The length is up to 300 meters using OM3 MMF.
